Takeuchi is a well-known manufacturer of small-scale equipment in the construction machinery industry; its product lineup includes mini excavators, compact track loaders, and other equipment.Widely used in landscaping, municipal maintenance, construction projects, pipeline installation, and other operational scenarios that require compact equipment.
This article covers common replacement parts for Takeuchi parts, signs of malfunction, how to look up part numbers, and key considerations for selecting the right parts.
Takeuchi Models
| Category | Takeuchi Model | Equipment Type | Approx. Operating Weight |
|---|---|---|---|
| Mini Excavators | TB210R | Mini Excavator | 1.2 Tons |
| Mini Excavators | TB215R | Mini Excavator | 1.6 Tons |
| Mini Excavators | TB216 | Mini Excavator | 1.8 Tons |
| Mini Excavators | TB217R | Mini Excavator | 1.7 Tons |
| Mini Excavators | TB320 | Mini Excavator | 2.1 Tons |
| Mini Excavators | TB225 | Mini Excavator | 2.4 Tons |
| Mini Excavators | TB325R | Mini Excavator | 2.4 Tons |
| Mini Excavators | TB230 | Mini Excavator | 2.9 Tons |
| Mini Excavators | TB235-2 | Mini Excavator | 3.5 Tons |
| Mini Excavators | TB335R | Mini Excavator | 3.8 Tons |
| Mini Excavators | TB240 | Mini Excavator | 4.1 Tons |
| Mini Excavators | TB250-2 | Mini Excavator | 5.1 Tons |
| Mini Excavators | TB350R | Mini Excavator | 5.1 Tons |
| Mini Excavators | TB257FR | Mini Excavator | 5.8 Tons |
| Mini Excavators | TB260 | Mini Excavator | 5.7 Tons |
| Compact & Medium Excavators | TB370 | Compact Excavator | 7.1 Tons |
| Compact & Medium Excavators | TB280FR | Compact Excavator | 8.5 Tons |
| Compact & Medium Excavators | TB290 | Compact Excavator | 8–9 Tons |
| Compact & Medium Excavators | TB290-2 | Compact Excavator | 8.7 Tons |
| Compact & Medium Excavators | TB3150 | Hydraulic Excavator | 15.8 Tons |
| Compact & Medium Excavators | TB3150R | Hydraulic Excavator | 16.4 Tons |
| Wheeled Excavators | TB370W | Wheeled Excavator | 7.9 Tons |
| Wheeled Excavators | TB395W | Wheeled Excavator | 12 Tons |
| Older / Discontinued Models | TB014 | Mini Excavator | — |
| Older / Discontinued Models | TB016 | Mini Excavator | — |
| Older / Discontinued Models | TB020 | Mini Excavator | — |
| Older / Discontinued Models | TB025 | Mini Excavator | — |
| Older / Discontinued Models | TB030 | Mini Excavator | — |
| Older / Discontinued Models | TB035 | Mini Excavator | — |
| Older / Discontinued Models | TB045 | Mini Excavator | — |
| Older / Discontinued Models | TB070 | Hydraulic Excavator | — |
| Older / Discontinued Models | TB080 | Hydraulic Excavator | — |
| Older / Discontinued Models | TB125 | Mini Excavator | — |
| Older / Discontinued Models | TB135 | Mini Excavator | — |
| Older / Discontinued Models | TB145 | Mini Excavator | — |
| Older / Discontinued Models | TB153FR | Compact Excavator | — |
| Older / Discontinued Models | TB175 | Hydraulic Excavator | — |
| Older / Discontinued Models | TB180FR | Hydraulic Excavator | — |
| Older / Discontinued Models | TB228 | Compact Excavator | — |
| Older / Discontinued Models | TB235 | Compact Excavator | — |
| Older / Discontinued Models | TB250 | Compact Excavator | — |
| Older / Discontinued Models | TB285 | Hydraulic Excavator | — |
| Older / Discontinued Models | TB1140 | Hydraulic Excavator | — |
| Older / Discontinued Models | TB2150 | Hydraulic Excavator | — |
| Older / Discontinued Models | TB2150R | Hydraulic Excavator | — |
What are the commonly used Takeuchi parts?

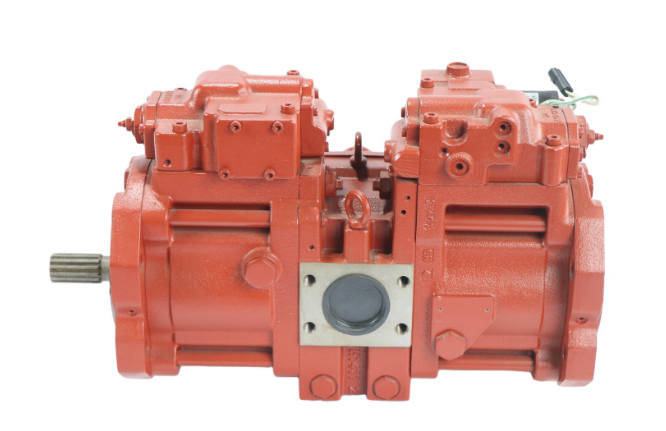

Hydraulic Pump
Hydraulic pumps are a critical component of an excavator’s hydraulic system.
They convert the mechanical energy supplied by the engine into hydraulic energy, providing power to the machine’s working equipment and related hydraulic systems.
Common hydraulic pump designs include gear pumps and piston pumps, depending on the machine’s configuration.
Common fault symptoms:
- Slow hydraulic operation.
- Abnormal pressure in the hydraulic system.
- Abnormal noise from the pump housing.
- Abnormal temperature rise in the hydraulic system.
- External leakage from the hydraulic pump.
Travel Motor
The travel motor is responsible for converting hydraulic energy into rotational mechanical power.
In crawler excavators, the travel motor typically works in conjunction with the final drive reduction gear to drive the tracks.
Common fault symptoms:
- One side of the track fails to move properly.
- Abnormal travel speed.
- Abnormal noise during travel.
- External leakage from the travel motor.
- Weak travel performance.

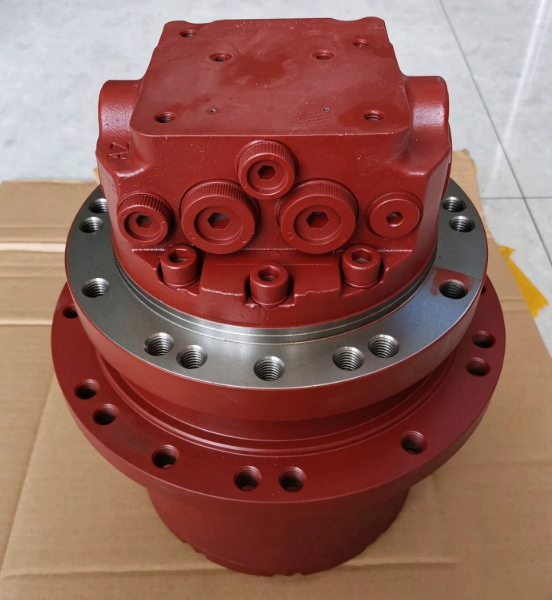

Final Drive
The final drive typically reduces rotational speed and increases output torque through a reduction gear mechanism.It is a critical component of the travel system in a crawler excavator.
The interior of the final drive may include planetary gears, bearings, seals, and other transmission components.
Common fault symptoms:
- Gear wear.
- Abnormal noise from the reduction gearbox.
- Lubricant leakage.
- Bearing failure.
- Output shaft binding.
The travel motor and final drive may be supplied as separate components or as a combined assembly.
Before purchasing, you should confirm whether you need a Travel Motor, a Final Drive Gearbox, or a complete Final Drive Assembly.
Hydraulic Cylinder
Hydraulic cylinders are responsible for converting hydraulic energy into linear motion.
Common types of hydraulic cylinders include:
- Boom Cylinder
- Arm Cylinder
- Bucket Cylinder
- Blade Cylinder
Common fault symptoms:
- Piston rod scoring.
- Seal leakage.
- Cylinder barrel damage.
- Oil leakage.
Hydraulic Seal Kit
Hydraulic seal kits are used to repair hydraulic cylinders or other hydraulic components.
The seal kit includes parts such as piston seals, piston rod seals, dust seals, support rings, and O-rings; the specific contents depend on the cylinder design.
Engine Parts
Depending on the model and production configuration, Takeuchi excavators may be equipped with diesel engines from different manufacturers.
Common engine suppliers include Yanmar, Kubota, and others.When searching for engine parts, you should first identify the engine mode
Common engine repair parts include:
- Fuel Injector
- Fuel Injection Pump
- Water Pump
- Alternator
- Starter Motor
- Turbocharger
- Gasket Kit
- Filter
Common Issues with Takeuchi Excavator Hydraulic Systems
The hydraulic system is a critical area that requires special attention when servicing compact excavators.
Below are some common fault symptoms and the systems that may be involved.
| Symptoms | Possible Affected Components or Systems |
|---|---|
| Slow Hydraulic Operation | Hydraulic pump, control valve, hydraulic oil supply system |
| Abnormal Travel on One Side | Travel motor, hydraulic control circuit, final drive |
| Boom Fails to Lift Properly | Hydraulic cylinder, control valve, hydraulic supply system |
| Hydraulic Oil Overheating | Cooling system, hydraulic pump, internal hydraulic leakage |
| External Hydraulic Cylinder Leakage | Piston rod seals, hydraulic cylinder seals |
| Abnormal Hydraulic System Noise | Hydraulic pump, suction system, mechanical coupling components |
Specific repairs should be determined based on the equipment’s technical manual, pressure test results, and other diagnostic findings.
How do I look up the part number for Takeuchi Parts?
Correctly identifying the part number is an important step when purchasing replacement parts for Takeuchi excavators.
Step 1: Confirm the Full Equipment Model Number
Check the equipment nameplate.
For example: Takeuchi TB260
The model name alone is usually not sufficient to ensure that all parts are compatible.
Step 2: Record the Equipment Serial Number
The equipment serial number helps determine the specific production configuration.
Some parts may have undergone design updates within a specific serial number range.
Therefore, the supplier may need the serial number to identify the correct original equipment part number.
Step 3: Consult the Parts Catalog
You can find relevant parts information through Takeuchi’s official parts support channels or authorized dealers.
Takeuchi’s official English-language parts support portal.
If you have a parts manual for this device, you can also look up the specific part number using the exploded view.
Step 4: Verify the Part Numbers of the Old Parts
Some hydraulic pumps, motors, and engine components have their own manufacturer part numbers.
Hydraulic pump nameplates typically display the complete pump model number or manufacturer’s part number.This information helps further identify replacement parts.
What information do I need to provide to purchase Takeuchi parts?
| Part Type | Required Identification Information |
| Hydraulic Pump | Equipment model, serial number, pump nameplate |
| Travel Motor | Equipment model, serial number, motor part number |
| Final Drive | Equipment model, serial number, final drive model |
| Hydraulic Cylinder | Equipment model, cylinder assembly number |
| Seal Kit | Cylinder model, seal kit number, seal dimensions（OD、ID、H size） |
| Fuel Injector | Engine model, engine serial number, injector number |
| Alternator | Engine model, original alternator part number |
| Starter Motor | Engine model, original starter part number |
For complex hydraulic assemblies, we recommend providing overall photos of the old parts and their nameplates to minimize procurement errors.
Original vs. Aftermarket Takeuchi Parts: How to Choose?
When servicing Takeuchi parts you can choose between original parts and compatible aftermarket replacement parts, depending on your needs.
Original Takeuchi parts are supplied in accordance with the equipment manufacturer’s parts system.
Aftermarket replacement parts are provided by independent manufacturers, and there may be variations in product quality, price, and availability.
| Comparison | Original Parts | Aftermarket Parts |
| Price | Generally higher | More pricing options |
| Availability | Depends on OEM supply channels | Depends on supplier inventory |
| Compatibility | Verified through OEM documentation | Requires additional compatibility checks |
| Quality | Based on OEM specifications | Depends on manufacturer |
| Product Options | Original equipment configurations | Multiple brands and alternatives |
| Lead Time | Depends on stock availability | Depends on inventory and production |
Common Mistakes When Purchasing Takeuchi Parts
- Providing only the Equipment Model Number
- Ignoring the Specific Engine Model
- Confusing the Travel Motor with the Final Drive Assembly
How can the service life of Takeuchi parts be extended?
Proper equipment maintenance can reduce the risk of premature failure of certain components.
It is recommended to perform regular inspections in accordance with the manufacturer’s specifications.
Hydraulic System
Keep the hydraulic fluid clean, and inspect the hydraulic fluid and filters according to the equipment maintenance requirements.
Contaminated hydraulic fluid can accelerate wear on pumps, valves, and other precision hydraulic components.
Travel System
Regularly check track tension, listen for unusual noises from the travel system, and inspect for external leaks.
Also, check the lubrication of the final drive according to the equipment maintenance requirements.
Hydraulic Cylinders
Keep the piston rod surfaces clean, and promptly check for external oil leaks, surface scratches, and the condition of the dust seals.
Engine
Replace engine oil, fuel filters, and other maintenance parts according to the engine manufacturer’s specifications.
If you notice any abnormal warning lights or a noticeable drop in performance, have the equipment inspected as soon as possible.
FAQ
How do I find a Takeuchi part number?
We recommend first confirming the complete machine model and serial number.Then, use the applicable parts manual, manufacturer’s documentation, or a catalog provided by an authorized dealer to look it up.
What brand of engine do Takeuchi excavators use?
Different Takeuchi models and production configurations may use engines from various manufacturers, including Yanmar and Kubota.Please refer to the actual engine nameplate for confirmation.
Can the hydraulic pump on a Takeuchi excavator be replaced separately?
Whether it can be replaced separately depends on the specific hydraulic pump design and repair plan.
What Is the difference between a Takeuchi travel motor or Final Drive?
If the actual product does not identify the accessory you need, please provide a picture and part number.
If you would like to understand the differences between the two, please refer to this guide“Excavator Final Drive vs Travel Motor”.
Are aftermarket replacement parts suitable for Takeuchi excavators?
High-quality aftermarket replacement parts that meet the equipment’s technical requirements can be a viable repair option.
Conclusion
Takeuchi Parts covers a wide range of categories, including hydraulic pumps, travel motors, final drives, hydraulic cylinders, seals, and engine parts.
Before placing an order, please have the complete equipment model, serial number, original part number, and photos of the old parts ready.
FarinParts provides procurement support for hydraulic systems and related replacement parts for construction machinery. If you need to inquire about hydraulic pumps, travel motors, hydraulic cylinders, or seals for Takeuchi excavators, please send us your equipment information and photos of the parts so we can further confirm compatibility and availability.
